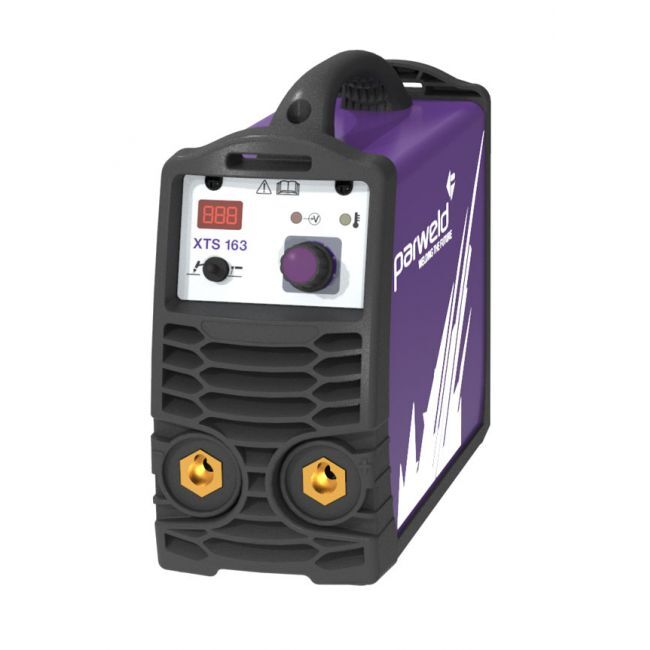

Parweld XTS163 160A MMA Inverter Welder 230v

Parweld XTS163 160A MMA Inverter Welder 230v

The XTS163 MMA Inverter uses latest technology to provide a compact and reliable machine, ideal for everyday applications. Electrodes up to 3.2mm can be used with ease.

(£218.40 Incl. VAT)
Add to favourites
SKU: xts163
Stock: instock
  • Description
  • Have a Question?

Parweld XTS163 MMA Inverter uses latest technology to provide a compact and reliable machine, ideal for everyday applications. You can use electrodes up to 3.2mm with ease. TIG welding, by fitting the optional TIG torch and coupling to a suitable gas supply the XTS163 can be used for TIG welding and is suitable for welding steel and stainless steel. The lift arc mode limits the arc current when the tungsten touches the work piece preventing electrode damage. Generator friendly, the XTS163 is able to cope with inputs which fluctuate by +/-15% & can be used with the majority of generators. The machine is in a rugged steel case. A carry case is available as an optional extra.

Parweld offers a fully comprehensive range of MIG, TIG, MMA and Plasma machines. The Parweld machine range offers robust, reliable and easy to use machines, for experienced welders and for those learning. Ranging from small machines that will suit the occasional maintenance work to heavy duty machines for large fabrication. Whatever your requirements, Parweld has a machine that will suit your needs. All machines are manufactured to ISO/IEC 60974-1, ISO/IEC 60974-6, RoHS directive, low voltage directive, EMC directive (CE Compliant).

Technical Data of Parweld XTS163

  • KVA: 6.
  • Machine Type: MMA Inverter.
  • Input Current (Max): 15.9A.
  • Maximum Electrode Size: 3.2mm.
  • Fuse Rating: 16A.
  • Duty Cycle: 160A @ 25%.
  • Output Current: 5-160A DC.
  • Input Voltage: 230v 1P.
  • Dimensions: 285 x 120 x 250mm.
  • Weight: 4.7kg.


  • Electrode striking with arc force and re-striking with hot start.
  • Connections 35-50mm dinse.
  • Digital amperage display.
  • Over voltage & over current protection.
  • 3 Years return to base warranty + 3 years servicing plan.
  • Manufactured to IP23S, ISO/IEC 60974-1, ISO/IEC 60974-6 & RoHS Compliant.

Here at lincweld, we work hard to make sure all our customers get the best product they need at the right price.

We have a wide collection of migtig, and stick welding machines available. check them out.

Always take these precautionary measures while welding.
